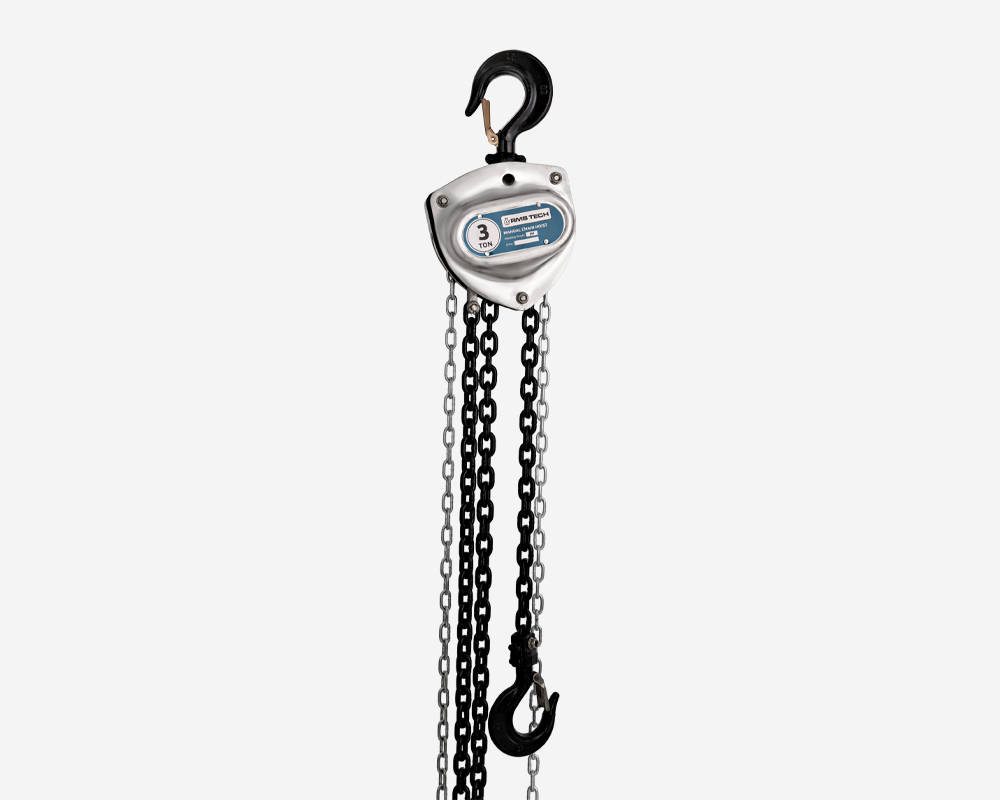

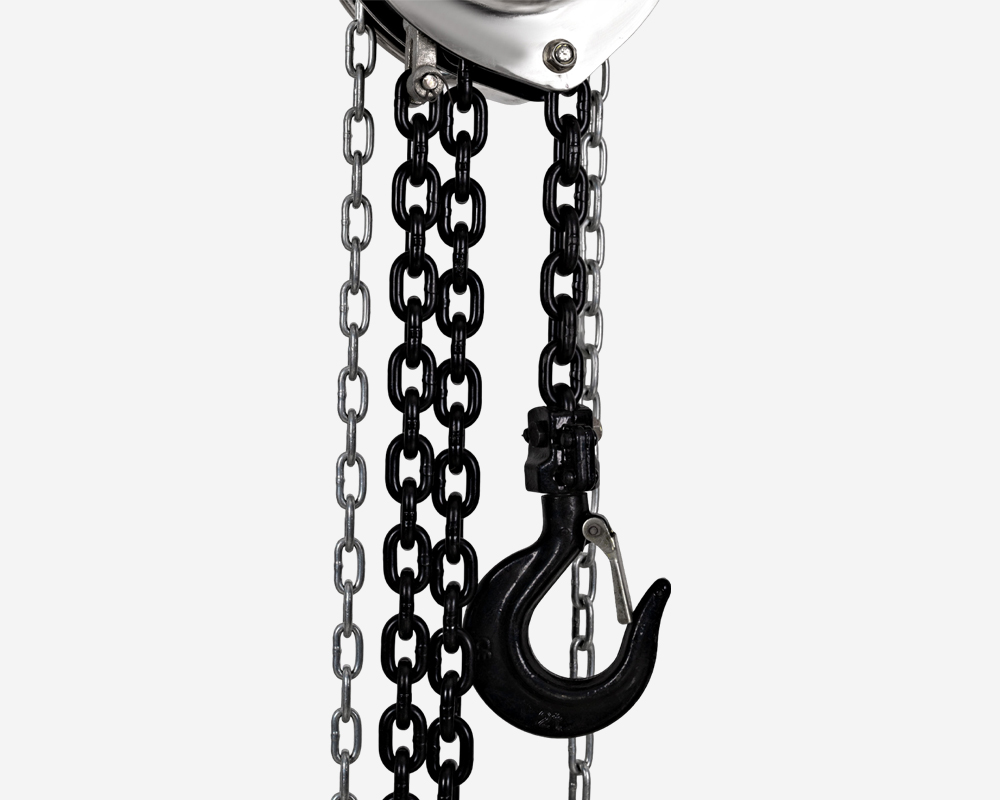

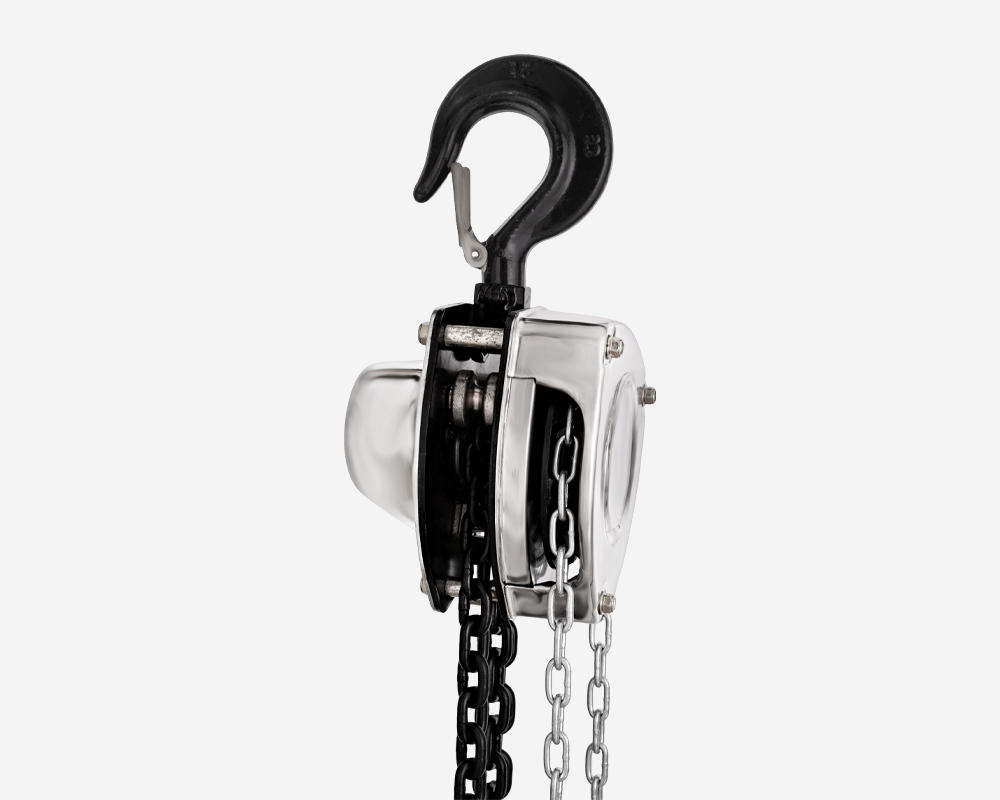

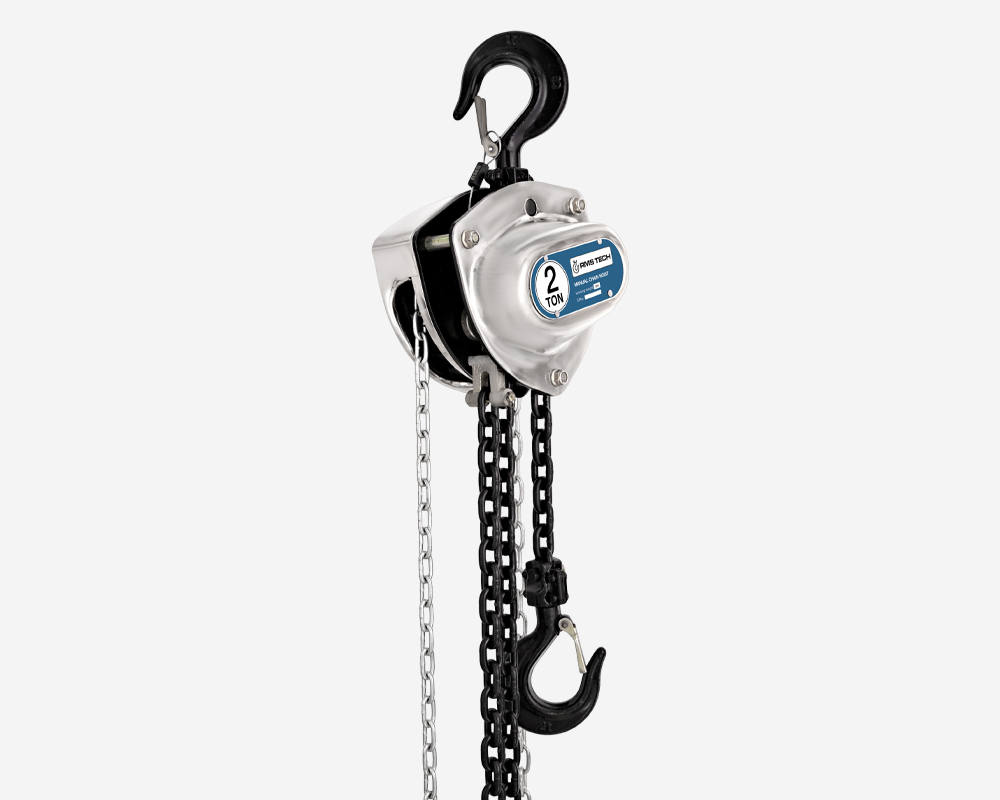

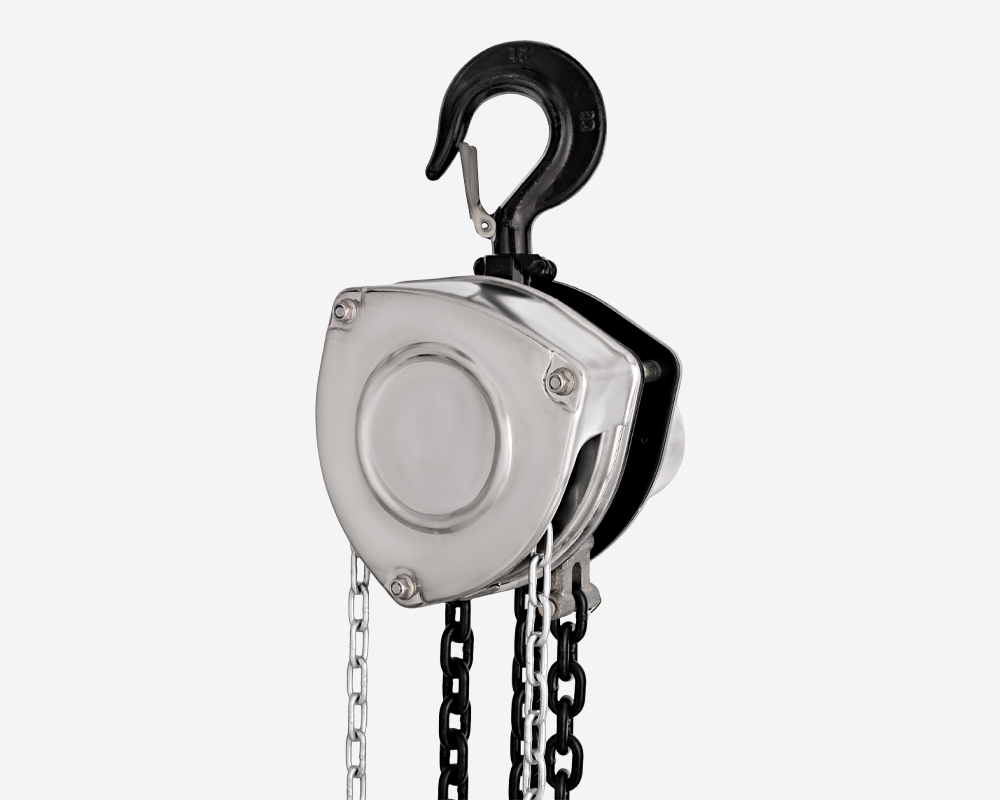

Chain Pulley Block
Chain Pulley Block
RMS TECH Chain Pulley Block – Precision-engineered in India for superior performance and durability. Built with a heavy-duty alloy steel body and high-grade load chain, this manual hoist ensures smooth lifting operations even in demanding industrial environments. Available in multiple lifting capacities and chain lengths, it’s ideal for workshops, warehouses, and construction sites.
Specifications :
| Capacity | 1 Ton – 20 Ton |
| Body Material | Heavy-Duty Mild Steel |
| Chain Grade | G80 Alloy Load Chain |
| Lift Height | 3m (custom available) |
| Safety | Double Pawl Brake System |
| Usage | Vertical lifting applications |
| Finishing | Powder Coating |
| Gear | Bearing Type |
| Gear Arrangement | Triple Spur Gear System |
| Hand Chain | 5mm |
| Packing | Wooden Box |
| Capacity | 500 kg – 1000 kg |
| Motor | Heavy-Duty 100% Copper Winding Motor |
| Wire Rope Length | 50 Meter |
| Rope Material | High-Strength Steel Wire Rope |
| Lifting Speed | 8–12 m/min |
| Power Supply | Single Phase |
| Mounting Type | Fixed / Portable Frame |
| Safety | Overload Protection & Emergency Stop |
| Body Material | MS Heavy-Duty Frame |
| Usage | Vertical lifting applications |
| Self Weight | 55 Kg |
